Video Doorphone System
Security Alarm Digital Video Doorphone

>CE approval (PH-855 System)
>Simple wiring & easy installation
>4 wires + video cable + 2 power wires

>Stainless steel material and unique backlight keypad in camera, dark automatic auxiliary illumination, let you have a clear view in the dark night.
>Store 500 open door codes in camera and code range from 1-12 digit. You can also store resident's name by English letters.
>European style design.
>Several languages for supporting different countries demand-French, German, Spanish, Portuguese, Polish, Czech, Danish & English.

>External connect a LCD Panel with the 855CC so as the Guard can view all the Visitors
>Utilizing the latest CPU controlled technology and the intelligent interface module such as 855CSD,855VSB and etc to make the system more efficient and easy to operate

>3 kinds of power supplies AC90-250V input or DC IN

>Audio handset (PH-855M3, Md or Mg) is also available
>Audio / Video doorbell (PH-855C3, C12a or C12b) unit

>Group Intercom all monitors in monitor function.

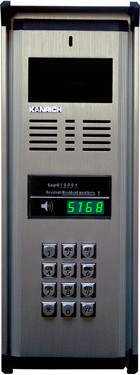

PH-855C8 Stainless Steel Digital Camera with card reader
PH-855C7 Stainless Steel Digital Camera

SUS316
Stainless Steel
Power In: DC15~18V by Adaptor
Resolution: Color- 480 TV line
Lens: Auto
CCD: 1/3" Color CCD
F1.8/3.6mm,Full angle 92 Degree
Min. illumination: 0.1Lux
at 4 white LEDs
Material: Stainless Steel
Dimensions: 300x200x75mm
Packing:0.25 cubic ft
Weight: 2.9 kgs
Need Prebox

with Inductive Card Reader

Editing by remote control system
Memorize 2,500 pcs
Inductive Cards (EM / Mifare Card)
Stainless steel+ Back light Keypad

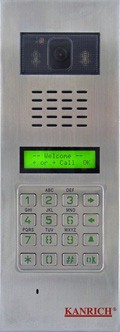

New Digit Camera
SUS304
Stainless Steel
Flash Demo of PH-855C7
Power In: DC15~18V by Adaptor
Resolution: Color- 480 TV line
Lens: Auto
CCD: 1/3" Color CCD
F1.8/3.6mm,Full angle 92 Degree
Min. illumination: 0.1Lux
at 4 white LEDs
Material: Stainless Steel
Dimensions:
W/prebox:
325x120x80mm (w/flush mounting prebox)
W/O prebox: 325x120x60mm
Packing:0.13 cubic ft
Weight: 1.5 kg
Need Prebox

Front panel+inner box+ keypad: SUS304
Back light Keypad
500 password for door open code
European Style + Memory your name in Camera
PH-855C9 CCD Push Button Camera with Card Reader
PH-855C10AL Aluminum Camera

Stainless Steel
12 to 24 Residents are Available
Power In: DC15~18V by Adaptor
Resolution: Color- 480 TV line
Lens: Auto
CCD: 1/3" Color CCD
F1.8/3.6mm,Full angle 92 Degree
Min. illumination: 0.1Lux
at 4 white LEDs
Material: Stainless Steel
Dimensions: 300x200x75mm
Packing: 0.25 cubic ft
Weight: 2.9 kgs
Need Prebox

with Inductive Card Reader

Editing by remote control system
Memorize 2,500 pcs
Inductive Cards (EM / Mifare Card)
Stainless steel Panel


1 to 2 Residents are Available
Power In:
DC15~18V by PH-P7a
Resolution: Color- 480 TV line
Lens: Auto
CCD: 1/3" Color CCD
F1.8 / 3.6mm,Full angle 92 Degree
Min. illumination: 0.1Lux
at 4 white LEDs
Material: Aluminum
Dimensions: 240X120X60mm
Packing: 0.4 cubic ft
Weight: 0.8 kg
Need Prebox (Surface or flash Type)
Aluminum case, Back light name plate
PH-855C5 10 Buttons Digital Camera
PH-855K2 20-Button keyboard

Front Panel:Alum
Inner box:
SUS316
stainless steel
1 to 10 Residents are Available
Power In:
DC15~18V by Ph-P7a
Resolution: Colour- 480 TV line
Lens: Auto
CCD: 1/3" Colour or B/W CCD
F1.8/3.6mm,Full angle 92 Degree
Min. illumination:
0.1Lux at 4 white LEDs
Dimension:
W/prebox: 325x120x80mm (w/flush mounting prebox) ,325x120x85mm (w/surface mounting prebox)
W/O prebox: 325x120x60mm
Packing: 0.13 cubic ft
Weight: 1.5 kg
Need Prebox
1 to 20 Residents are Available
Working Voltage: From 368C5
Installation way: Flush mounting type or Surface mounting type
Front Panel:Alum
Dimensions: (L)323mm/(W)120mm/(H)55mm
Flush part 45mm, the thickness after installation is 10mm
Weights: 0.4 kg
Measurement: 0.13'
Dimensions of flush pre-box: material-zinc plate
Flush pre-box: (L)290mm/(W)100mm/(H)55mm
Surface pre-box: (L)323mm/(W)120mm/(H)55mm
Double pre-chassis: (L)323mm/(W)270mm/(H)45mm
Double Surface pre-box: (L)323mm/270mm/(H)45mm
PH-855C15 CCD Push Button Camera with Card Reader

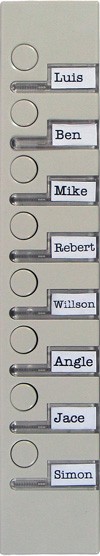

PH-855K3 8-Button keyboard

Power In: DC15~18V by Adaptor
Resolution: Color- 480 TV line
Lens: Auto
CCD: 1/3" Color CCD
F1.8/3.6mm,Full angle 92 Degree
Min. illumination:
0.1Lux at 4 white LEDs
Material: ABS
one button on it for single house or call Guard
Dimension: 285x100x40mm
Packing: 0.13 cubic ft
Weight: 1.0 kg
Wall mounting type
Flush mounting type--No need extra pre-box, just put the base into the wall directly
with Inductive Card Reader
Editing by remote control system
Memorize 2,500 pcs
Inductive Cards (EM / Mifare Card)

1 to 8 Residents are Available
Power In:
Supply from PH-855C15
LED illumination display
Material: ABS
Dimension:
285x50x40mm
Packing: 0.08 cubic ft
Weight: 0.6 kg
Wall mounting type
Flush mounting type--No need extra pre-box, just put the base into the wall directly
PH-855C6 Visitor call panel with metal digital keypad
PH-855C10 Stainless steel CCD Camera
Password door open function is available
Resolution: Colour-480 TV lines
Lens: Auto
CCD: 1/3" Color CCD
F1.8,Full angle 92°
Min. illumination: 0.1Lux
at 4 white LEDs
Material: Aluminum
Dimension: 300/200/75mm
Packing: 0.25 cubic ft
Weight: 2.7 kgs

Pinhole Type
SUS304
Stainless steel case

1 to 4 Residents are Available
Power In: DC15~18V by PH-P7
Touch Pad keyboard
Resolution:
Color- 480 TV line
Lens: Pinhole Lens, Auto
CCD: 1/3" Colour or B/W CCD
Min. illumination: 0.1Lux
at 4 white LEDs
Material: Stainless Steel
Dimensions: 100x180x30mm
Packing:0.06 cubic ft
Weight: 1.0 kg
Wall mounting type (no need Prebox)
SUS304 Stainless steel case
Need rain cover of outdoor status
PH-855C12a Stainless steel CCD Camera
PH-855C12b Stainless steel CCD Camera

Pinhole Type

1 Resident is Available
Power In: DC15~18V by PH-P7a
Resolution: Color- 480 TV line
Lens: Pinhole Lens, Auto
CCD: 1/3" Color CCD
Min. illumination: 2Lux

Material: Stainless Steel
Dimensions: 230x150x2(47)mm
Packing:0.06 cubic ft
Weight: 1.0 kg
Need Prebox (Flush Type)

Stainless steel case
Need rain cover of outdoor status

Pinhole Type

1 Resident is Available
Power In: DC15~18V by PH-P7a
Resolution: Color- 480 TV line
Lens: Pinhole Lens, Auto
CCD: 1/3" Color CCD
Min. illumination: 0.1Lux
at 4 white LEDs
Material: Stainless Steel
Dimensions: 230x150x2(47)mm
Packing:0.06 cubic ft
Weight: 1.0 kg
Need Prebox (Flush Type)

Stainless steel case
Need rain cover of outdoor status
PH-855C3AL Door bell with CCD
PH-855C11 Door Bell with CCD
Power In: supply From M
Resident Door bell
wire:
4 (with CCD)
Resolution: Color- 480 TV line
Lens: Auto
CCD: 1/3" Color F1.8, 92 degrees
Min. illumination: 0.1Lux
at 4 white LEDs
Material: Aluminum
Dimensions: 240X120X60mm
Packing: 0.06 cubic ft
Weight: 1.0 kg
Need Prebox (Flush or surface Type)
Power In: supply from M
Resident Door bell
wire: 4 (with CCD)
Resolution: Color- 480 TV line
Lens: Auto
CCD: 1/3" CCD F1.8, 92 degrees
Min. illumination: 0.1Lux
at 4 white LEDs
Material: ABS
Dimension: 80/125/32mm
Packing: 0.2 cubic ft
Weight: 0.2 kg
PH-855M7  7 " Handsfree color LCD Monitor
PH-855Mi  4 " Video Handsfree Monitor
Video Handsfree Monitor
Front panel: abs

Power In: DC15V
Screen:
Wide viewing angle, Color- 7" LED LCD Panel
Resolution: 800 X 3H X 480V dot

Active Area: 154.08(W)x86.58(H)(mm)
View Angle: Top: 30deg.; Bottom: 60deg.
left / Right: 60deg.

Calling tone: Ding-Dong tone
Consumption: standby 70mA. operating 450mA.
wire: 4 wires + 2 power wires + 1 Video cable
The message LED flash if the call is from the 855CC or the Camera
Dimension: 235/150/25 mm
Packing: 0.5 cubic ft
Weight: 1.0 kg



4" Video Handsfree Monitor
Power In: DC15V
Screen:
Wide viewing angle, Color- 4" TFT LCD Panel
Back light: White LED
Resolution: 960H X 234V  dot

Active Area: 82.1(W)x61.8(H)(mm)
View Angle: Top: 10deg. Bottom: 30deg.
left / Right:
45deg

Calling tone: Ding-Dong tone
Consumption: standby 70mA. operating 300mA.
wire: 4 wires + 2 power wires + 1 Video cable
The message LED flash if the call is from the 855CC or the Camera

Wall mounting type
Material: ABS
Dimension: 170w/130h/35 mm
Packing: 0.3 cubic ft
Weight: 0.5 kg

3
kinds of different colors for choosing in side cover
PH-855Mh  4 " Video Handsfree Monitor

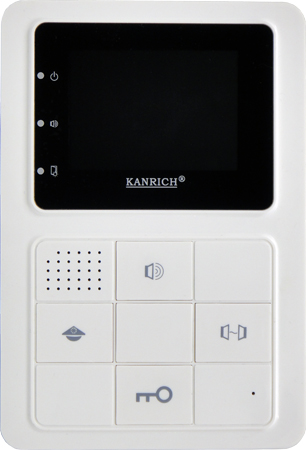

PH-855M35 3.5" HandsFree Monitor



4" Video Handsfree Monitor
Power In: DC15V
Screen:
Wide viewing angle, Color- 4" TFT LCD Panel
Back light: White LED
Resolution: 960H X 234V  dot

Active Area: 82.1(W)x61.8(H)(mm)
View Angle: Top: 10deg. Bottom: 30deg.
left / Right:
45deg

Calling tone: Ding-Dong tone
Consumption: standby 70mA. operating 300mA.
wire: 4 wires + 2 power wires + 1 Video cable
The message LED flash if the call is from the 855CC or the Camera

Wall mounting type
Material: ABS
Dimension:110w/113h/35 mm
Packing: 0.2 cubic ft
Weight: 0.4 kg

Option: prebox, Holder

Video Handsfree Monitor
Power In: DC15V
Screen: Color- 3.5" Diagonal Color TFT LCD Panel
Resolution: 430H X 234V dot
Active Area: 72(W)x50.554(H)(mm)
View Angle: Top: 10deg. Bottom: 30deg.
left / Right:
45deg

Calling tone: Ding-Dong tone
Consumption: standby 40mA. operating 350mA
Wall mounting type
Material: ABS
wire: 4 wires + 2 power wires + 1 Video cable
Dimension:189/129/30 mm
Packing: 0.3 cubic ft
Weight: 0.31kg
PH-NP Name Plate for Camera


For each kinds of cameras
Show resident's addresses or resident's numbers on it, visitors can call the resident who wants visit easily
Dimensions: the same as the dimensions of 855C7

PH-855CC The Control Center

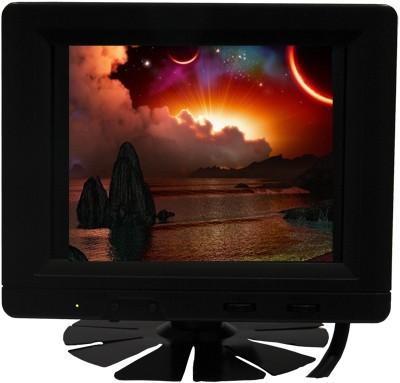

5.6" LCD Panel for 855CC
This is the bridge between the Resident and VCP, pls refer to our Instruction Guide for the other functions.
Power In: AC100~230V  Full Range
Decode: 20 call memory for 855CC
Review: Checking the last 20 call memories
Types: 1 to 10 Blocks
Dimension: 445/255/110mm
Packing: 1.3 cubic ft
Weight: 4.0 kg
The Monitor of 368CC
Working Voltage:
Video- DC12V supply from 368CC
Installation way: Wall mounting type
Material: ABS
Dimensions: 160/180/38mm
Weights: 0.8kgs
Measurement: 0.3 cuft
PH-855Mg Audio HandsFree
PH-855M3 Audio handset
Handsfree Audio Handset
Power In: DC15V
Calling tone: Ding-Dong tone
Consumption: standby 70mA
operating 200mA
Wall mounting type
Material: ABS
wire: 4 wires + 2 power wires
The message LED flash if the call is from the 855CC or the Camera
Dimension: 210/95/40 mm
Packing: 0.2 cubic ft
Weight: 0.5 kg
Power In: DC15~18V
Calling tone: Ding-Dong tone
Consumption: standby 70mA,operating 200 mA
Wall mounting type
Material: ABS
wire: 4-wire + 2 power wires
The message LED flash if the call is from the 855CC or
the Camera
Dimension: 200/100/45mm
Packing: 0.2 cubic ft
Weight: 0.4 kg
PH-855Md Audio HandsFree
PH-P6 The power supply
Handsfree Audio Handset
Power In: DC15V
Calling tone: Ding-Dong tone
Consumption: standby
70mA,operating 200 mA
Wall mounting type
Material: ABS
wire: 4 wires + 2 power wires
The message LED flash if the call is from the 855CC or the Camera
Dimension:100/220/47 mm
Packing: 0.2 cubic ft
Weight: 0.5 kg
Power In: AC110V/220V/230V
Power out: DC16.5-18V / 2.5A
Installation way: Wall mounting type
Material: ABS
Dimension: 160X120X80mm
Packing: 0.08 cubic ft
Weight: 2 kg
European design - Din Rail Type
PH-P9 Power Supply for Monitor
PH-P7a Switching Power Supply for Monitor
Power Source: AC 85-264V  47- 63 HZ
Working temperature -20 ~ +60

Output:
15V, 0 ~ 5.0 A
DC output adjustment 15 ~ 16.5V

Dimensions: 170x97x40 mm
Net Weight: 0.6kg
Separated connectors AC / DC
When output LED indicator off: Fuse open
PH-P7 Switching Power Supply Power Source: AC100-240V 47-63HZ
Output: DC 15V / 1.5A
Installation way: Wall mounting type
Material: ABS

Dimensions: 105x55x36 mm
Net Weight: 115 mgs
Dual Purpose fixed way: European type of Din Rail or hangings type
Separated connectors AC / DC
When output LED indicator off: Fuse open
No need to dismantle from cover, you can change fuse easily
It's a convenient size (115 mg / 105x55x36 mm)
European design - Din Rail Type
PH-P8 Power Supply for Monitor
PH-855VSB Video/Signal Booster




Power Source: AC 85-264V  47- 63 HZ
Working temperature -20 ~ +60

Output:
15V, 0 ~ 5.0 A
DC output adjustment 14.25 ~ 16.5V

Dimensions: 170x97x40 mm
Net Weight: 0.6kg
Separated connectors AC / DC
When output LED indicator off: Fuse open
Video/Signal booster
Power In: DC15~18V
Consumption: operating 200mA
Dimension:107Wx156Lx50Hmm

Packing: 0.03 cubic ft
Weight: 0.7 kg
PH-CSD System Distributor
PH-VB4C Video Booster
Camera-system Distributor
Power In: DC15~18V
Consumption: Operating 300mA
Dimension: 107Wx156Lx50Hmm
Packing: 0.03 cubic ft
Weight: 0.7 kg


For small space
one Video Main In
One Video Main Out
6 Branch output
Gain from 47 to 100 ohm

Power In: DC12~16V
Consumption: operating 100mA
Dimension: 35Wx26Lx6Hmm

Packing: 0.01 cubic ft
Weight: 0.1 kg
